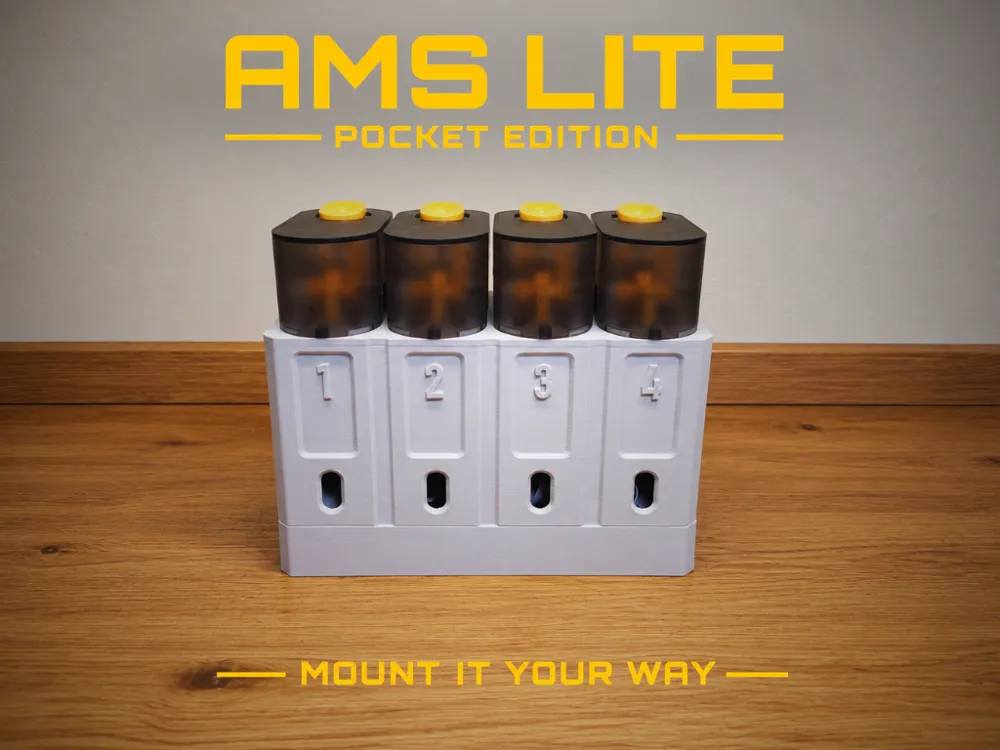

AMS Lite Pocket Edition is a compact and versatile version of the AMS Lite, designed to house only the essential components of the filament feeding system: the motors, motherboard, and Filament Funnel Units.

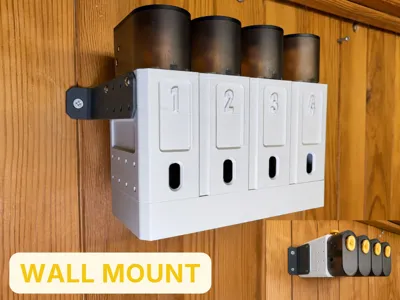

The project is designed to adapt to a wide variety of setups and available space. The Pocket Edition is completely independent from the printer, except for the power/data cable and the PTFE tubes, and supports three main mounting options:
It can also simply be placed on a custom stand or integrated into your own setup.
AMS Lite Pocket Edition was designed to:
This project is a modification of the original AMS Lite and therefore requires either a complete AMS Lite to disassemble or the corresponding replacement parts purchased separately.
The main components required are:
Replacement parts can be purchased directly from the Bambu Lab store. Before buying individual components, it is recommended to compare their total cost with the price of a complete AMS Lite, as the actual savings depend on your country, currency, availability, and current promotions.
The Pocket Edition can also be assembled using only two motors, installed in the two center positions while leaving the two outer positions of the M-Block empty.
This configuration reduces the number of components required when four filament channels are not needed. Depending on current prices, however, purchasing individual spare parts is not always less expensive than buying a complete AMS Lite.
The following hardware is required in addition to the parts recovered from the original AMS Lite.
In addition to the Standard Version:
In addition to the Standard Version:
In addition to the Standard Version:
Approximate dimensions of the Pocket Edition:

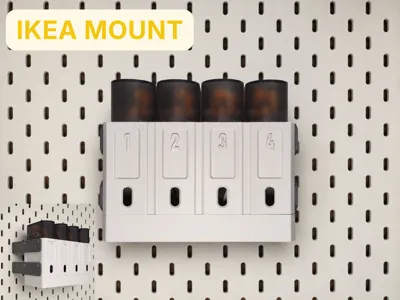

When installed using either the Wall Mount or IKEA SKÅDIS Mount, the Pocket Edition extends approximately 125 mm from the mounting surface, depending on the selected configuration and PTFE tube routing.

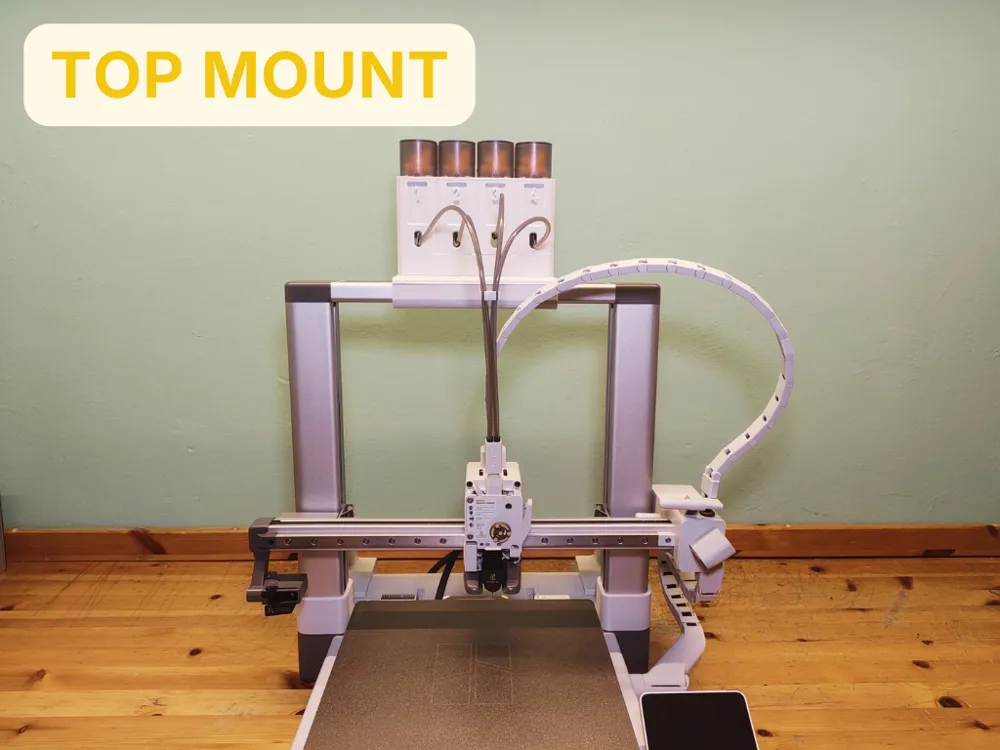

For the Top Mount, simply add the Pocket Edition height above the printer to determine the total required clearance.
The PTFE tubes can be routed:
The design is intentionally flexible, allowing each user to adapt the tube routing to their own printer layout and spool placement.
Keep the PTFE tubes between the Pocket Edition and the printer as short as reasonably possible while avoiding tight bends or kinks.
Excessively long PTFE tubes increase friction during filament loading and unloading. Over time, this may place additional stress on the feeder motors and could eventually lead to loading errors.
The AMS Lite is designed as an affordable filament management system and therefore uses relatively small motors. The Pocket Edition has been thoroughly tested and operates reliably, but minimizing PTFE tube length is one of the best ways to ensure consistent performance.
The tubes should not be so short that they create sharp bends, nor so long that unnecessary friction is introduced. The ideal configuration is the one that allows the filament to travel with the least possible resistance.
AMS Lite Pocket Edition was designed with compactness, flexibility, and versatility as its primary goals.
If you’re looking for a more advanced and fully modular solution—including integrated spool holders, roller systems, and multiple configuration options—you may also be interested in my AMS Lite 4.0 project. It offers a more comprehensive approach while maintaining full compatibility with the original AMS Lite electronics.
Before requesting assistance, please make sure you have carefully read both the project description and the assembly tutorial, as they contain the answers to most common questions.
If you still need help or have any questions, feel free to send me a private message. It allows me to manage requests more efficiently and provide more accurate support for each individual case.
Thank you again for your support, and happy printing! 😊
