Z-Axis Side Cable Guide — Bambu Lab A1

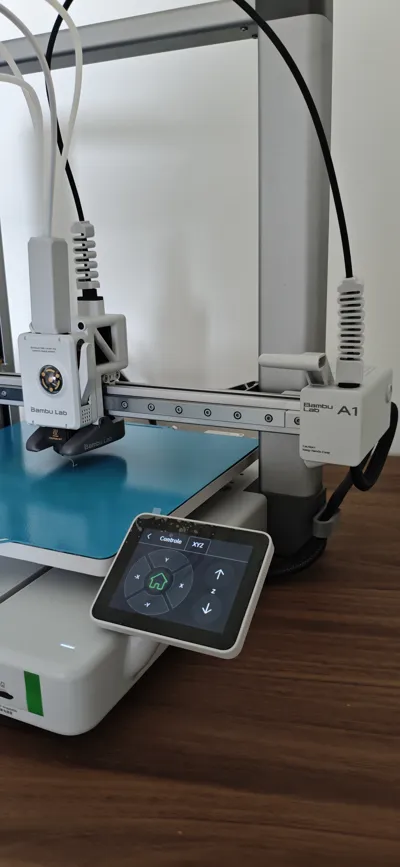

This clip was designed to properly guide the side cable of the Bambu Lab A1 Z-axis, keeping the cable on the correct path throughout the entire movement of the Z-axis.

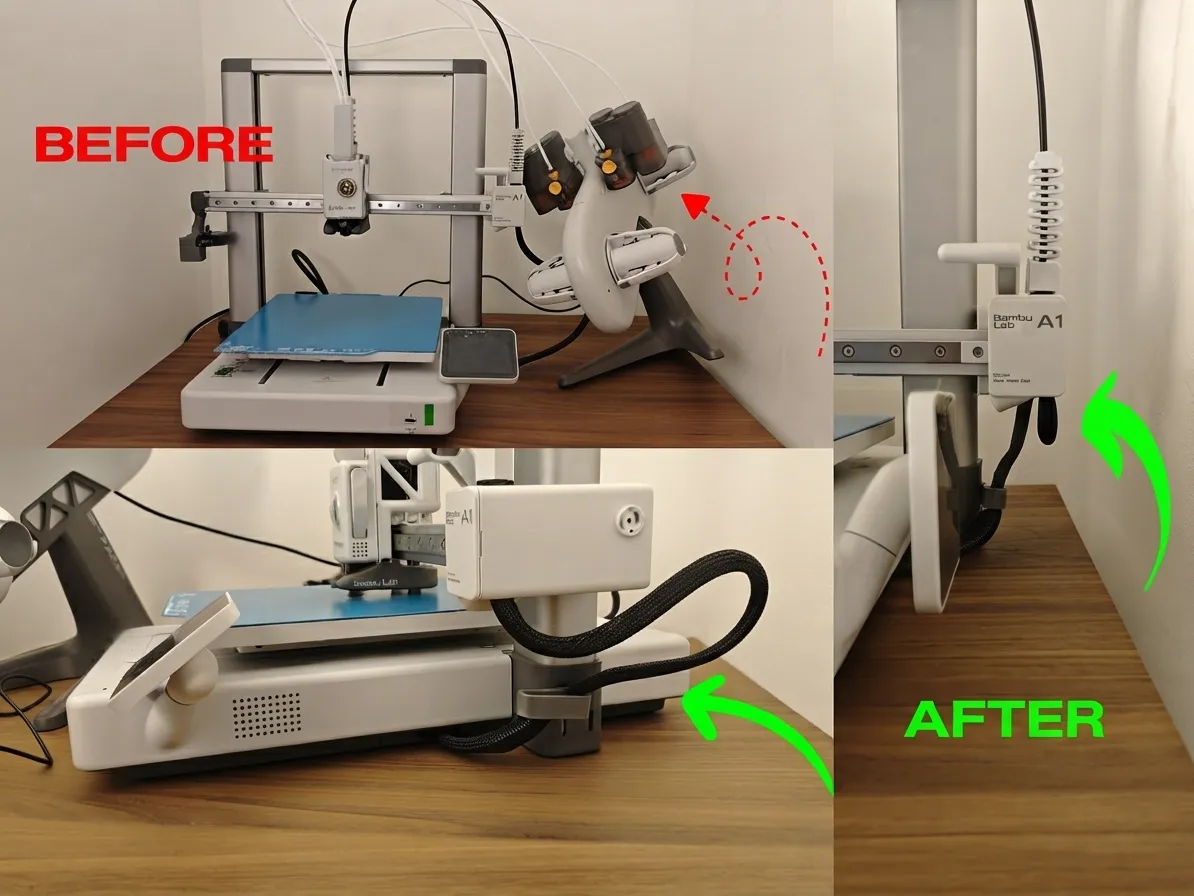

In the setup recommended by the manufacturer, the AMS Lite is typically positioned next to the printer, close to the path of this cable. When the Z-axis moves downward, the cable can flex outward toward the side, getting closer to the AMS Lite and, in some situations, wrapping around or getting caught on it.

This can restrict the movement of the Z-axis and potentially cause print failures or even interrupt a print.

🔧 Simple and Effective Solution

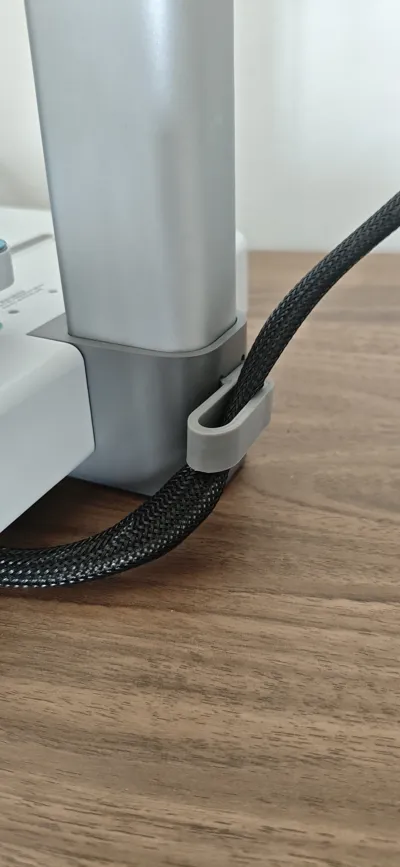

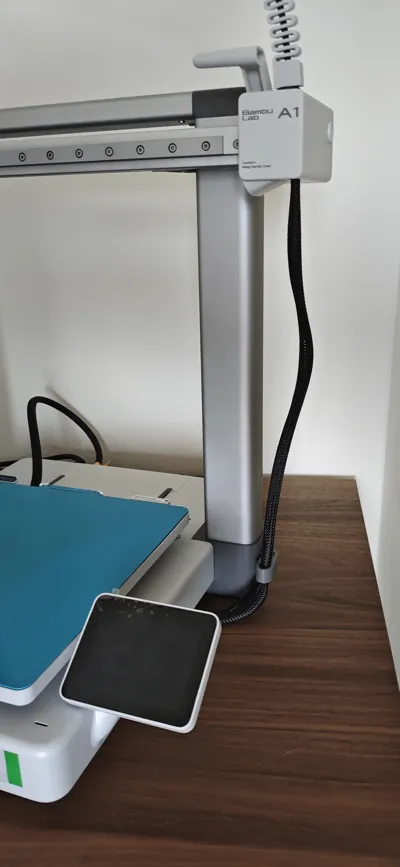

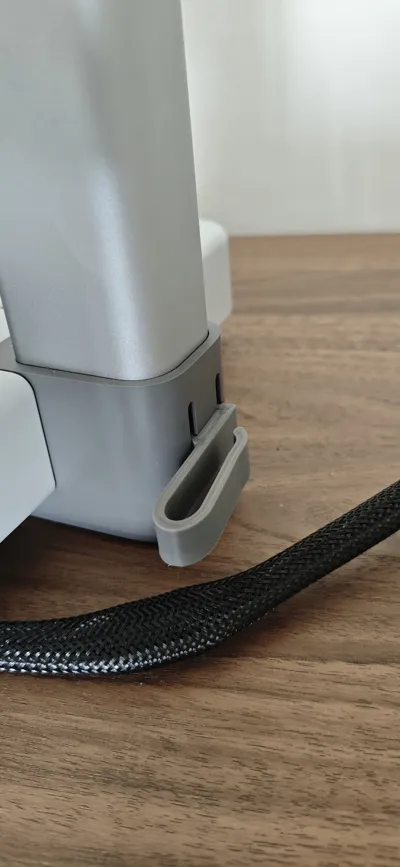

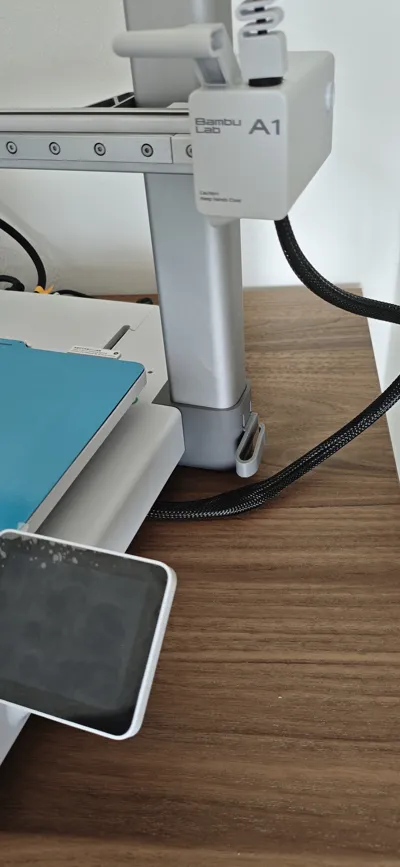

The model works as a cable guide clip, with a fit designed specifically for the Bambu Lab A1, keeping the cable routed toward the back of the printer.

The main advantage of this design is that it guides the cable without limiting the Z-axis travel.

Unlike some other models available on MakerWorld that also route the cable toward the back, this design was created to avoid excessively pinching or restricting the cable during vertical movement. This allows the cable to follow the entire Z-axis travel more freely and naturally.

✨ Key Features

• Compatible with the Bambu Lab A1.

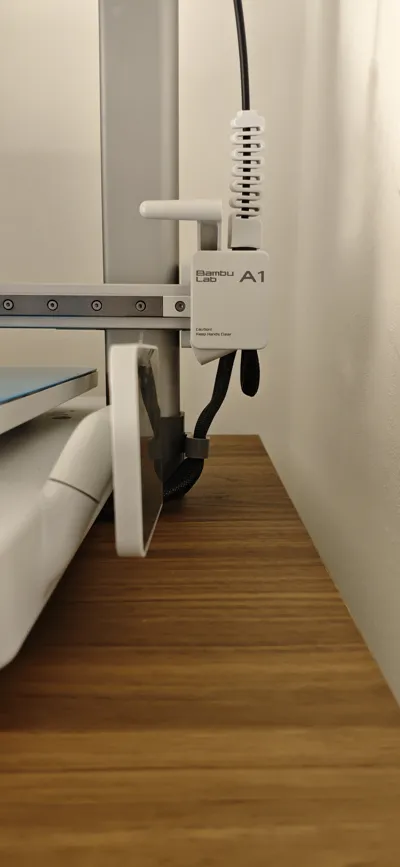

• Routes the Z-axis side cable toward the back of the printer.
• Helps prevent the cable from getting close to or wrapping around the AMS Lite.
• Keeps the cable organized throughout the entire Z-axis movement.
• Designed not to limit the maximum printing height.
• Simple and secure snap-on installation, with no modifications required to the printer.
• Fast and economical to print.

🖨️ Print Time & Filament Usage

The model is extremely quick and economical to manufacture:

⏱️ Approximately 27 minutes to print
⚖️ Approximately 4 g of filament

In other words, this is a small but useful improvement that can be printed quickly using very little material.

🔗 You may also like

If you are looking to further improve your Bambu Lab A1 + AMS Lite setup, check out my other project:

A1 AMS Lite Hub Protector + PTFE Guide — 2-in-1

This is another small and practical upgrade designed to improve cable/PTFE management and protection around the AMS Lite setup.

👉 Check it out on MakerWorld:
A1 AMS Lite Hub Protector + PTFE Guide — 2-in-1

If you try it, I hope it helps make your setup even cleaner and more reliable!
